Coin Slides

Here you will find our range of coin/token acceptors which will suit your need for every possible situation.

tokette-slides_copy

Related Articles on Coin Mechanism’s

Why Use Tokens?
Chutes For Foreign Coins
Price Change Instructions for Vertical Systems

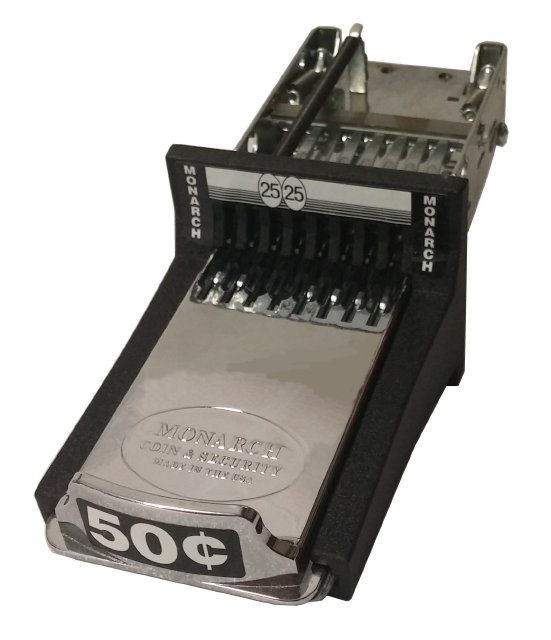

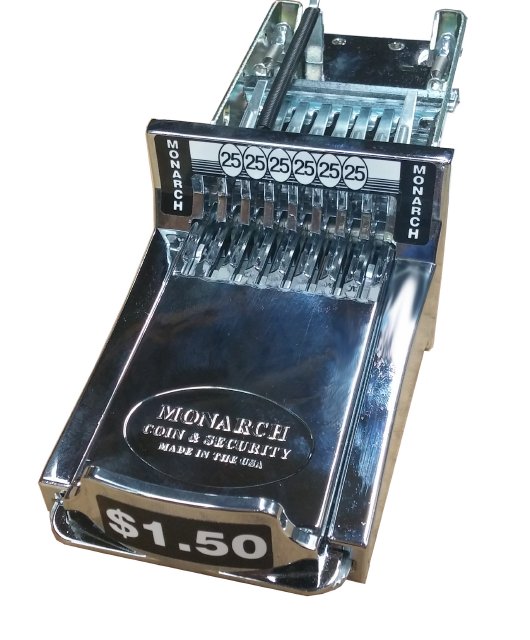

Vertical Eight Coin Mechanism

  • Stronger, Heavier Housing
  • Stronger, Heavier Slide
  • Smoother Operation
  • New, Cleaner Lines

Price Change Information:
No Dis-assembly Required for Price Changes!

PART NUMBER:

V8L-01 CHROME
V8L-05 BLACK

AVAILABLE FOR CURRENCY OF MOST NATIONS

  • Chrome Or Durable Black Powder Coat Finish
  • Anti-Cheat Fingers & Sensitive Gauging
  • No Dis-assembly For Price Changes
  • 25¢ to $2.00 – Field Adjustable
  • Steel and Die Cast Construction
  • Available For Most Tokens

THE BLACK POWDER COAT

The powder coating process starts with a finely powdered blend of epoxy and polyester particles which are sprayed on to the metal part while it is hung from a statically charged line.

The part passes into a curing oven with a heat in excess of 400 degrees, where the particles melt and fuse to the base metal, leaving a tough resilient and flexible finish that will surpass enamel or plating in durability. Resistant to chemicals and salt air, the product bypasses the pollution problems of chrome plating process and leaves a superior finish, at truly “Green” product.

Vertical Eight Token/Quarter Combo

ACCEPTS UP TO $1.75 IN QUARTERS OR STARTS WITH ONE TOKEN!!

  • Ideal for Promotional Program
  • Incentives for Building Managers
  • Pre-sell for Discount Program
  • Perfect for Refund Policies
  • Great for Wash & Fold
  • Replaces Any Regular Vertical Coin Chute

Price Change Information:
No Dis-assembly Required for Price Changes!

PART NUMBER

V8T-004D For Double D Token / Quarters

PART NUMBER

V8T-004M For Monarch Wash N Fold / Quarters

This specialized mechanism accepts up to $1.75 in quarters, or the price setting may be over-ridden by ONE Double D or ONE special brass token, according to the model you chose. All changes are internal to the chutes, so it will fit where any other Vertical Coin Chute would be used.

The special tokens are minted from gauge materials. They are the same diameter as conventional .880 tokens but are exceptionally thin. This minimizes any possibility to defraud with arcade tokens and other coins. Available in brass only.

The unit is useful for wash & fold operations, to minimize the coins the attendants need to handle, and provide a tool for accountability. It is useful for promotional or discount programs, and for the establishment of a refund policy.

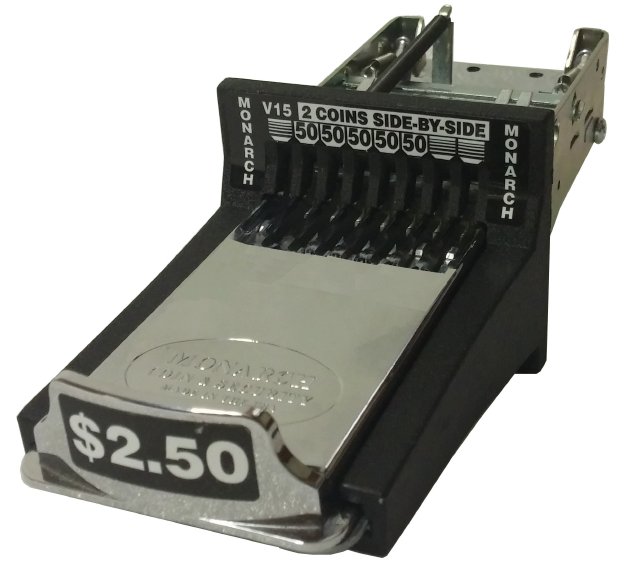

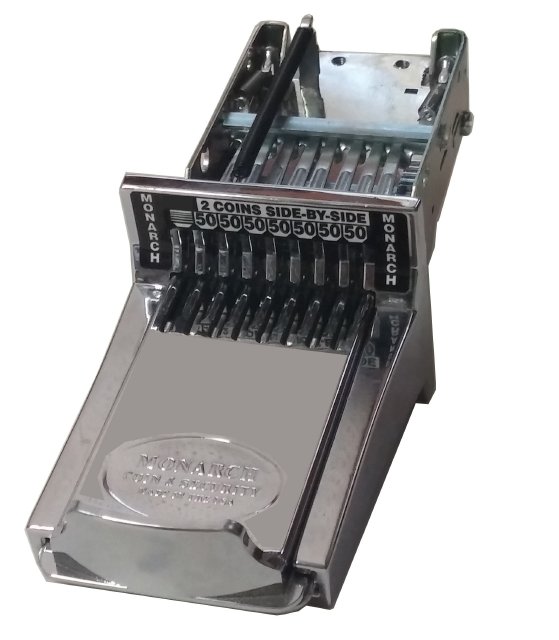

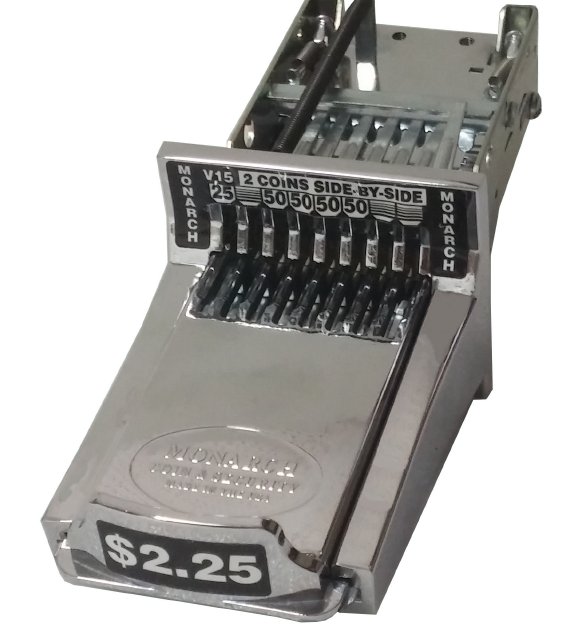

Vertical Fifteen Coin Mechanism

ACCEPTS UP TO $3.75 IN ONE PUSH!

  • Avoids Problems of Double Push
  • Replaces Any Vertical Eight
  • Allows 25¢ Price Increases
  • No Accumulators Required
  • Ideal for Larger Machines

Price Change Information:
No Dis-assembly Required for Price Changes!
PART NUMBER
V15-L01 (CHROME)
V15-L02 (BLACK)


IDEAL FOR: WASCOMAT, SPEED QUEEN, or other large machines the generally take a higher vend price.

A specialty chute designed for machines which need to get over the $2.00 limit imposed by conventional Vertical Eight Coin Mechanisms. It fits where any other coin chute would, and avoids the necessity of double stroking the machine. The extra capacity is gained by re-working seven of the slots to accept TWO Quarters Side-By-Side.

Decals on the Chute reflect the need for two quarters in each slot, and an additional 4″ x 6″ decal is included with each chute to guide your customers in their use.

Model 444

The Model 444 is a single coin or token mechanism. It is the primary acceptor for the use of Monarch’s special security tokens.

Accepts coins from the size of a dime up to and including the Canadian $1 Loonie. The units are simple, rugged, and easy to maintain. Available with factory mounted electric switch when required.

444 pic and wording
Check out our Security Tokens for laundry and vending applications.
>> Maintenance and Tune-up Notes for the Model

**PART NUMBER WILL VARY DEPENDING ON TOKEN/COIN**

PART NUMBER

4L-xxx (TOKEN OR COIN, LAUNDRY)
4V-xxx (TOKEN OR COIN, VENDING)

AVAILABLE IN TRADITIONAL CHROME FINISH OR BLACK POWDER COAT

Please specify your preference with you order

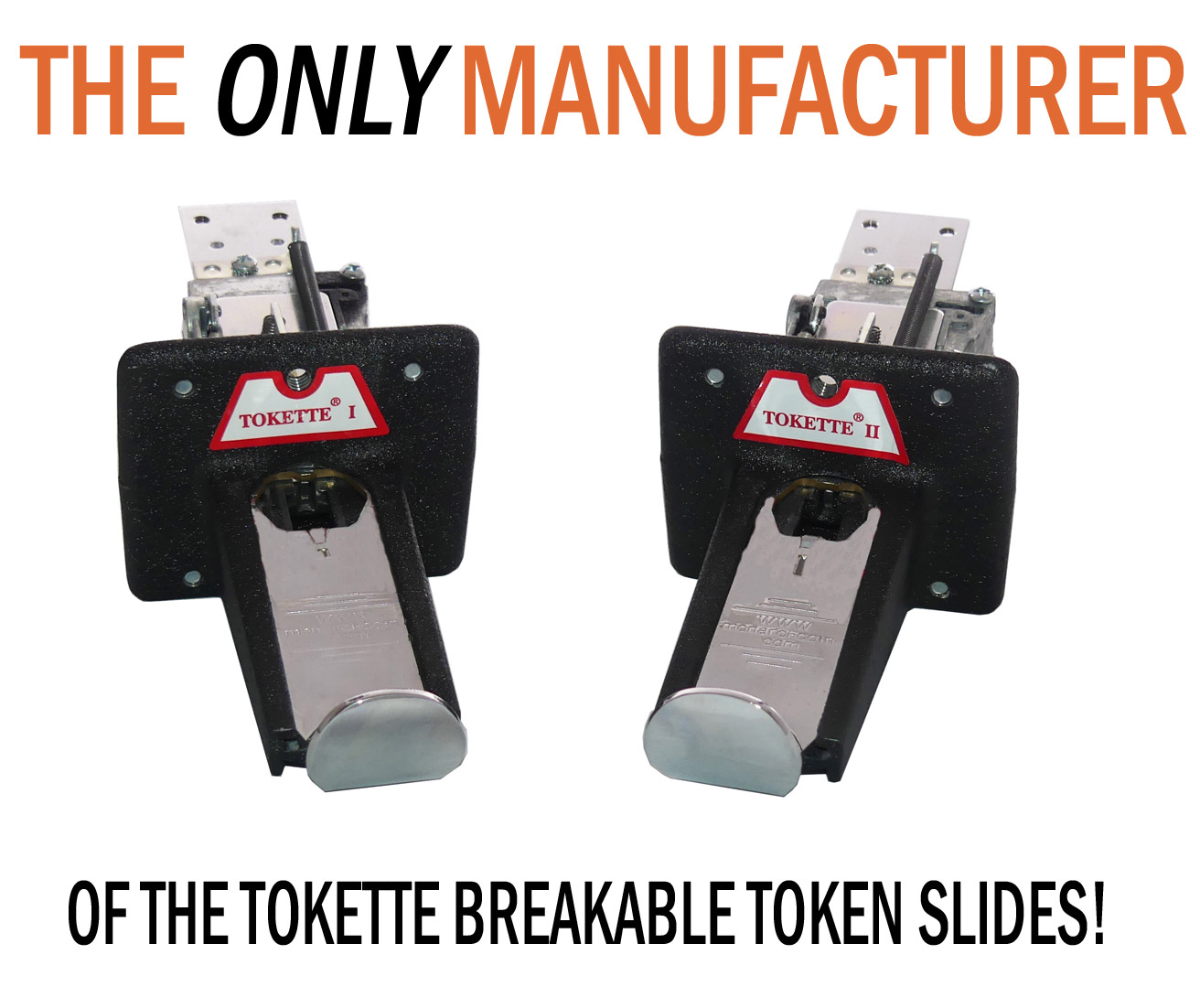

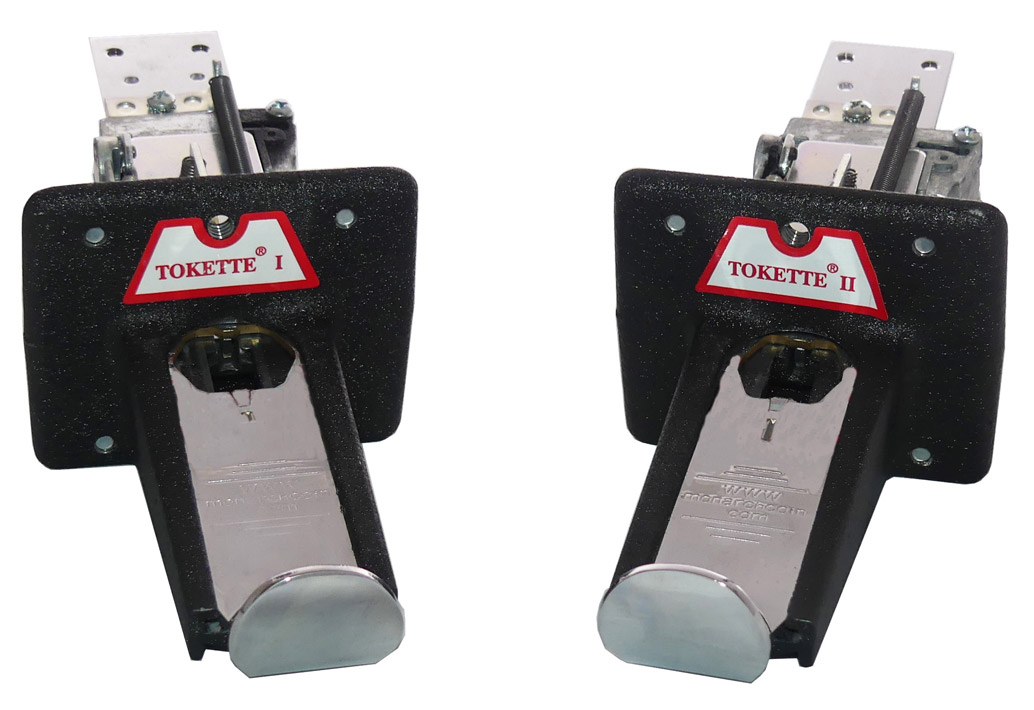

Chutes & Kits For Tokettes I, II, & III

tokette-slides_copy

**As the originator of this coin slide we offer this slide to many different companies. You may find them on the market in different forms but rest assured there is only one manufacture. **

Now available in traditional chrome finish. Please specify your choice when ordering.

TOKETTES are SINGLE USE, breakable plastic tokens that remove some of the risk of having cash in machines located in unsupervised, high risk areas.chrome Tok 1
These are ideal for apartment complexes and institutional laundries. Tokens allow you to control pricing as well as who has access to the use of the machine.

Chutes alone are for converting existing equipment with minimal expenditures.



PART NUMBER

4L-TOK 1
4L-TOK 2
4L-TOK 3

TOKETTES ARE AVAILABLE FOR PURCHASE UPON REQUEST!!

Complete Kits are available for putting new commercial equipment into service.
Monarch manufactures ONLY the chutes.

Chutes are available for a wide range of conventional round tokens, Double D Tokens, Teddy Bear Tokens and a Monarch’s special High Security Tokens.

See your Commercial Laundry Distributor for information on these items.

Due to restriction on distribution, certain tokens are not available in all areas.

Chute Mounting Bolts and Extensions

These parts are required to put a machine into service. Please take note of the remarks with each one to determine what may be needed for your particular machine.

Mounting Bolts

15a-002 wp mounting bolt
15A-001 Speed Queen, General Electric, Etc.

15a-002 wp mounting bolt
15A-002 Whirlpool & Maytag

Extensions

15a-007 wp washer ext
15A-007 For Whirlpool Washers

15a-008 wp dryer ext
15A-008 For Whirlpool Dryers

SQ-WASHER-15A-010
15A-010 Speed Queen Washer

Speed Queen’s New Machines Have the Dryer Extension Packed in the Machine

ge-washer-new-15a-010n
15A-010N General Electric Washer (New GE)
**Older GE’s use a 15A-004**

15a-005-wascomat-bracket
15A-003 General Electric Dryer

KNM-WASH-BRKT-15A-012
15A-012 Kenmore Washer


16A-KIT-OI
Universal Switch Kit
For WHIRLPOOL EMS 1000 Series Washers & Dryers
For use with any coin chutes in the electronic models.

Click Here For Coin Kits
