There are two operations to changing the price on Monarch Vertical Mechanisms.
1) Setting the pockets, that is the opening into which the coins or tokens are inserted. The bars which are slid forward to open the pocket or back to close it are called the "carriers"

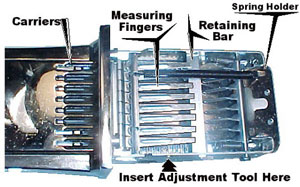

2) Adjusting the top measuring fingers. These are the eight metal fingers visible at the top and to the rear of the housing.
Once the chute is removed from the machine, Please follow the steps listed below. All directions, that is left, top, bottom rear, are based on the chutes as normally seen from the customer's viewpoint when the chute is installed.

So that you will not be fighting the return tension and for easier handling, first unhook the return spring from the holder at the rear, and lay the holder aside.

The first step is release any fingers on the retaining bar. Hook the tool on the bar from the rear and push back to pivot the front edge of the bar upward, allowing the fingers to fall down.

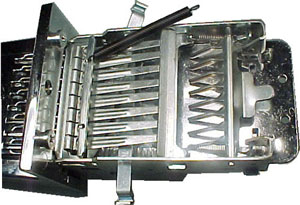

Insert an adjusting tool into both sides (using the larger hole with a small "tooth" on its perimeter) and slide the tools under all eight fingers. Turn the tool and lift the fingers so that ALL of the fingers will rest on the retaining bar. NOTE! Do not skip Step One to do this, as it will result in bent measuring fingers. Once this is completed the chute should free-play.

Turn the coin chute over. With the slide pushed in part of the way, you should see the area as shown. The gauging bar has been removed for clarity, but this is not necessary. If you find the area too tight to work in, you may remove the bar also, by gently prying one end from its slot and laying it aside. Take careful note of which way the bar is in first so you may reinstall it properly later.

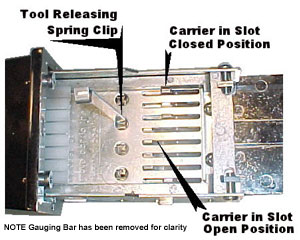

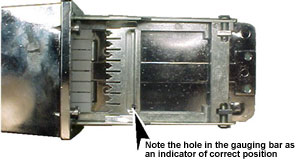

Insert the point of the tool between the edge of the hole and the spring clip on the side against the carrier to be moved. Once the hook at the end of the spring clip disengages from a slot in the carrier (this is unseen) the carrier may be moved forward or backward as required. Once in the desired position, release the spring clip and then wiggle the carrier to make certain it has been locked in place again. NOTE: Never push the carrier all the way to the rear to close it. A small gap should always remain at the rear of the slot to allow the Anti-Cheat fingers to enter unobstructed. Repeat as necessary until the combination of slots is set as desired. If you removed the gauging bar, reinstall it, making sure that it is properly oriented. THIS IS IMPORTANT FOR PROPER OPERATION.

Turn the chute right side up and pull the slide back out. Confirm the proper slots are open or closed as desired.

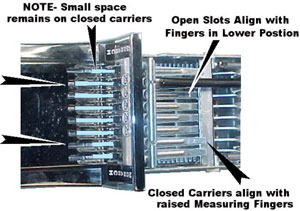

Once again, release ALL the measuring fingers that are resting on the retaining bar, until they rest on the lower lock bar. Slide an adjustment tool in from each side as before, but picking up ONLY those fingers which align with slots that are CLOSED. All fingers aligned with open slots are to be left resting on the lock bar.
Replace the return spring bracket and reconnect the spring. Check the chute for proper function with the appropriate coins or tokens. Re-install in the equipment.

DECALS FOR YOUR COIN CHUTE ARE AVAILABLE.

PLEASE SEE OUR LIST OF DECALS AND THE PROPER COMBINATION OF OPEN SLOTS FOR EACH SETTING.
