KEY KOP LOCKING KEY RINGS

Some products, similar to the Key Kop, use lighter, smaller cable, with no protection for the nylon coating. They also have bodies made of plastic or zinc die castings.

Other products offer only one type of lock. By offering different styles, the Key Kop may be provided with a lock matching the level of security desired. Key Kops may be keyed differently, keyed alike or keyed in groups to your order.

See the illustrations below and note the features which make the Key Kop the best choice for a durable, secure locking key ring.

Click here for information about available locks.

To purchase our Key Kop locking Key rings

visit our sister website www.keykop.com

locking key ring

locking key ring

An Additional Feature!

Key Kops Have Colored Protective Polyurethane Boots

These boots can be laser cut with numbers, logos or names for an additional charge.

Red, Orange, Yellow, Green, Blue, Purple, Black, White, Aqua, Pink, Light Blue, Silver, Tan, Florescent Pink, Florescent Green, and Glow In The Dark





Available in Red, Orange, Yellow, Green, Blue, Purple, Black, White, Aqua, Pink, Light Blue, Silver, Tan, Florescent Pink, Florescent Green, and Glow In The Dark

locking key cable
Key Kop Cables are measured unlocked and extended.

NOTE: One end of the cable is fixed. They cannot be replaced in the field, nor interchanged.

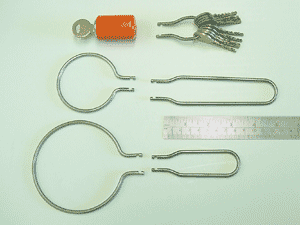

locking key shackles



Shackles come in five sizes, and are interchangeable to suit your needs.

Shackles may be purchased separately. Shackles are measured by their length or diameter.

Illustrated from top left down, and top right down are, Lock body w/Key, 2 1/2″ ring, 4″ ring, 1 1/2″ ring, 5″ loop, (scale to shown size) and the 3″ loop

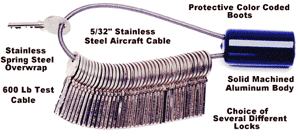

Key Kop 1 – Cable

The cable style is a 7 over 7 stainless steel aircraft cable, nylon coated, and then covered with a stainless steel cover to offer protection from abrasion and to minimize kinking of the cable. One end unlocks, while the other end is captive, preventing keys being dumped while being serviced. Cable terminals are recessed within the body to minimize break points. The bodies are machined from solid aircraft grade aluminum bar, and are covered by colored polyurethane boots, available in various colors, to enable a way to code groups of keys to specific functions, and offers some protection for the body of the unit. Available with a choice of locks and in several lengths.

Note: Part numbers are decoded as follows:

KK = KEY KOP 1  (CABLE VERSION)
A = Tubular Lock
D = Duo Lock
M = Medeco Lock
6 = 6″ Cable
8 = 8″ Cable
12 = 12″ Cable
18 = 18″ Cable

EXAMPLE: KK-D-8 is a Key Kop cable, 8″ long with a Duo lock. Colors are specified separately.
Custom lengths available on special order
Please contact us for further information.

Available in Red, Orange, Yellow, Green, Blue, Purple, Black, White, Aqua, Pink, Light Blue, Silver, Tan, Florescent Pink, Florescent Green, and Glow In The Dark

KK-A-6

6″ Cable with Red Boot Shown with 12 keys

KK-D-8

8″ Cable with Black Boot
Shown with 20 keys

KK-M-12

12″ Cable with Blue Boot
Shown with 40 keys

KK-M-18

18″ Cable with Yellow Boot Shown with 50 keys

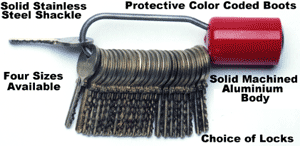

Key Kop 2 – Shackle

The shackle style uses a 5/32nd” Stainless Steel rod formed into a 4″ circle, 2-1/2″ circle or into loops that are 1-1/2″, 3″, 5″ long and 1-1/4″ wide. The shackle withdraws completely from the body, so keys may be removed from either end. Shackles are interchangeable and shackles may be bought separately for maximum flexibility in arranging sets to order.

The bodies are machined from solid aircraft grade aluminum bar, and are covered by colored polyurethane boots, available in various colors, to enable a way to code groups of keys to specific functions, and offers some protection for the body of the unit.

Note: Part numbers are decoded as follows:

KS = KEY KOP 2 ( SHACKLE VERSION)
A = Tubular Lock
D = Duo Lock
M = Medeco Lock
1 = 1 1/2″ Shackle
2 = 2 1/2″ Ring
3 = 3″ Shackle
4 = 4″ Ring
5 = 5″ Shackle

Example: KS-A-2 is a Key Kop with a 2″ round shackle, with a Tubular lock. Colors specified separately.

Available in Red, Orange, Yellow, Green, Blue, Purple, Black, White, Aqua, Pink, Light Blue, Silver, Tan, Florescent Pink, Florescent Green, and Glow In The Dark

KS-A-1

1 1/2″ Shackle with Yellow Boot
Shown with 10 keys

KS-D-2

2 ” diameter ring, to allow easier use with belt clips. (Tactical Belt Clips are sold separately – Call for quote)

KS-D-3

3″ Shackle with Red Boot Shown with 25 keys

KS-M-4
4″ Ring with Black Boot Shown with 40 keys
KS-M-5

5″ Shackle with Blue Boot Shown with 50 keys



LOCKS

Below are the locks that are available for the Key Kop locking key rings.

We may have other locks available for different applications and industries.

No other locking key ring offers a greater selection of locks from which to choose. Our solid metal housing offers greater security than plastic bodied units.

Tubular LockTubular Lock – Inexpensive, durable tubular style keys & locks.
**An excellent choice for minimal security needs**

Duo LockDuo Lock– A higher security lock, using double bitted non-symmetrical cut keys. Restricted key path means greater security against unauthorized duplicates.

Medeco LockMedeco Lock – Highest security lock available. Restricted key codes, and pick resistant features make this the most secure lock you can buy. (Master Keying available – special order.)

Key Kops may be ordered keyed differently, keyed alike in groups, or keyed alike. Keep in mind that keys are sold separately.

Our cables are sheathed for longer service and greater protection from damage. Key Kops are warrantied for one year against defects in material and workmanship. SEE WARRANTY

We now have the ability to customize your key rings with numbers, logos or insignias.

A set up fee will be additional

Please contact us for a quote to your specific needs.




BELT CLIPS

These strong welded, powder coated steel clips require a positive unlocking action to remove the key ring from the operator’s belt. The operator’s belt is passed through the clip.

  • 2 1/2″ belt loop is large enough to fit most utility belts.
  • No accidental loss of rings that have slipped from a regular clip.
  • No one can grab the ring and run.
  • Only available in black
