Universal Coin Operated Door Lock

Highlighted items are part of a kit
Download Brochure
Installation Guide
Order Form | En Espanol

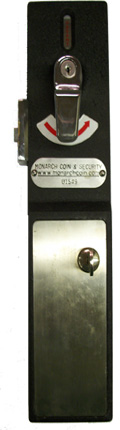

UCL / RESTROOM LOCK

You can now order the Universal Coin Operated Locks online!! Please click here to visit our new site – www.CoinOperatedProducts.com

This rugged, time-tested device has once again found its place in access control for restrooms. The lock may be made to accept nickels, dimes or quarters, or one of a number of tokens. You do not have to charge for the use of your facility, but you will be able to control usage. Please read all of the information below before ordering.

ORDERS FOR BATHROOM LOCKS MUST BE SUBMITTED ON THE ORDER FORM

** PLEASE NOTE: TECHNICIANS AVAILABLE MONDAY – FRIDAY 7:00 A.M. TO 3:00 P.M. EST **

Please Fax a completed order form to 859-261-7403

or send it via email to sales@monarchcoin.com

List Price $295.00 each, Plus shipping via UPS Ground Service
Two or more units are $285.00 each,Plus shipping via UPS Ground Service

Orders for units using tokens will include 50 free tokens per order.(Limit 50 free tokens per customer)
Additional tokens are available for purchase in increments of 100, with 200 being the min. order.

***Price for tokens may vary as material prices (brass) may fluctuate***

Please complete all information on the order form or your order will not be processed!

When completing the order form, please pay close attention to the single or multi-use area, and door thickness.

NOTE: Multi-use units are meant for doors where multiple users enter at the same time (such as the entrance door on a bathroom with multiple stalls or toilets).

For areas that only have one user at a time going through the door (such as a stall door), please check the “Single use box“. This is one of the largest issues when ordering a UCL.

CONTROL IS THE ISSUE
You may not want to create a Pay Toilet, but controlling who has access can be important. CONSIDER USING TOKENS. This allows you or your employees to have a face-to-face contact with whomever is using your facilities. Restrict access to customers or just have some idea of who is using your restrooms. No keys to pass out and retrieve and the facilities remain locked. These units have been great for other doors and gates to restrict access and provide security.

Ideal for:
Campgrounds, service stations, airports, theaters, laundromats, parks, and any place where access must be controlled.

Use on Restroom, Shower or Entry Doors:
*Promote Cleaner Facilities
*Offer Customers Added Security
*May Be Coin or Token Operated / or Both
*Generate Revenues
*Available For Many Foreign Coins
*More ADA Compliant Door Handle

In operation:
The user inserts the appropriate coin/token in the entry slot at the top. The customer turns the handle and enters the facilities and the door will latch as it closes. The lock will accept no further coin, and will display “IN USE” in the window. When the customer exits the facility, the inner door handle opens the door, and the door re-latches on closing. The display will show “VACANT”, ready for the next patron, requiring another coin before it can be opened again.

Also available for Multi-user.

If used on an outer restroom door, the patron places a coin or token in the slot and they enter. Another patron may also put a token in and be admitted. Please check the appropriate block on the order form.
For access by an attendant for cleaning or other purposes, the lock may be opened by using the appropriate key in the lock in the handle. Collections are made by unlocking the lower door with a completely different key.

The lock is black powder coated with plated door handles and stainless steel coin box, and constructed of quality die cast, brass, and steel materials. Please examine information on mounting style so the proper hand and strikes may be furnished.

Universal Coin Lock Installation

1) Attach Strike (keeper) to door jamb NOTE: Keeper supplied is dependent on style of mounting based on information furnished to questions above.

2) Place door on lock as close as possible to the Strike. Back plate may be used as a template to mark hole locations. It is IMPORTANT that the exposure between the Strike and Lock be kept to a minimum to allow the door to swing away easily with no interference.

3) Drill ¾” hole for inside handle stem through door. Hole must be straight so that inside handle operates freely. Drill clearance holes for the escutcheon screws through the door.

4) Attach the aluminum back plate to the door with the appropriate screws. Insure that the ½” hole in the plate is centered over the hole in the door, and the two screw holes for the escutcheon align, and the two tabs are at the top.

5) Attach the escutcheon plate and inside handle. Make sure that it turns freely.

6) Attach the coin lock by engaging the top tabs into the slots inside the housing, and swinging it down and into place. It may be necessary to rock the inside handle slightly until the tab engages the release inside the lock.

7) Test lock with appropriate coin or token.

NOTE: Never lubricate with oils, or WD40 products. Use only flake graphite or silicon spray.
Jams may be cleared by slipping a thin flat steel (dull hacksaw blade for example) pressing the jam through.

The lock is hand fabricated, so lead times may be up to six weeks, and the specialized nature of the product is such that all orders must be paid at time of order. Most orders are ready to ship within a few days.

***Due to the nature of this product and the protection it provides, this unit may be damaged or vandalized and may require maintenance from time to time. In the event the unit has been damaged or does not work properly due to misuse or improper installation, Monarch Coin and Security, Inc. will not warranty the product.***

Service Information

** PLEASE NOTE: TECHNICIANS AVAILABLE MONDAY THROUGH FRIDAY 7:00 A.M. TO 3:00 P.M. EST **

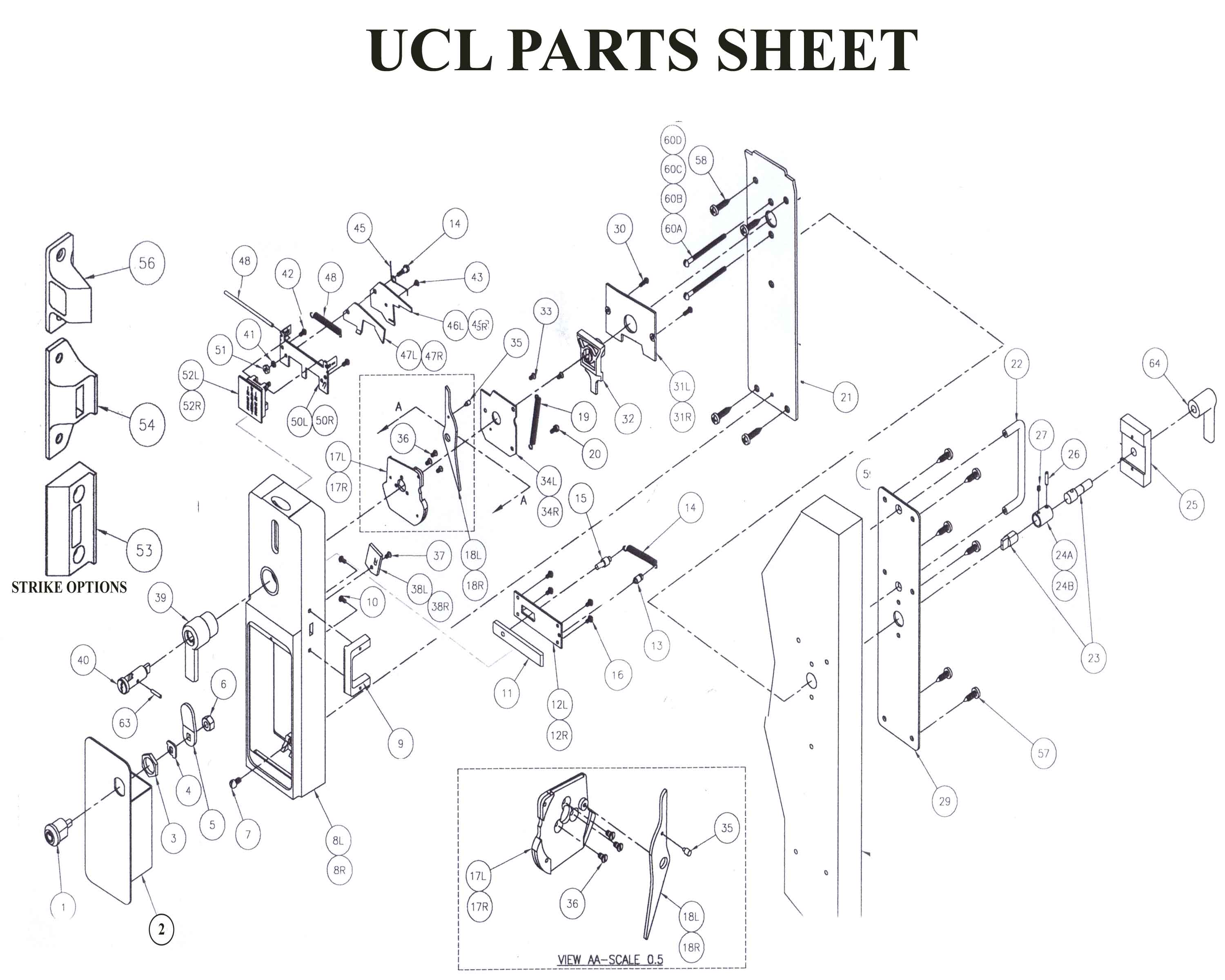

UCL PARTS LIST

UCL PARTS LIST
PART # DESCRIPTION INFORMATION REQUIRED: WHEN STANDING OUTSIDE OF THE ROOM, LOOKING AT THE DOOR:
1A OUTSIDE HANDLE SOLD AS A KIT ONLY ARE THE HINGES ON THE LEFT OR RIGHT?
1B COIN WHEEL
1C COIN WHEEL MOUNTING SCREWS
2A ADJUSTMENT TUBE SOLD AS A KIT ONLY WHAT IS THE THICKNESS OF THE DOOR?
2B ESCUCHEN PLATE
2C INSIDE HANDLE
2D INSIDE HANDLE STEM A
2E INSIDE HANDLE STEM B
2F INSIDE HANDLE SPRING
3A INDICATOR SOLD AS A KIT ONLY(ITEMS WITH *** ARE FOR SINGLE USE UNITS) IS THIS FOR SINGLE OR MULTIPLE USE? ARE THE HINGES ON THE LEFT OR RIGHT?
3B INDICATOR BRACKET
3C INDICATOR HINGE ROD
3D INDICATOR MOUNTING SCREWS
3E UNIVERSAL SPRING
3F INDICATOR PAWL ***
3G INDICATOR DAWG ***
3H DOG PAWL SPRING ***
3i DOG PAWL PIN SCREW ***
3J KEEP NUT ***
4A MONEY BOX LOCK SOLD AS A KIT ONLY (ITEM 4D CAN BE SOLD SEPARATELY IF NEEDED) DO YOU NEED KEYS? DO YOU WANT TO MATCH A PREVIOUS KEY CODE?
4B BARREL NUT
4C STEM NUT
4D LOCKING CAM
5 PASS LOCK CYLINDER DO YOU NEED KEYS? ARE THE HINGES ON THE LEFT OR RIGHT?
6 MONEY BOX
7 HOUSING
8 BACK PLATE SCREWS (3)
9A DOOR GUARD FOR OUTSWING DOORS ONLY
9B SCREWS FOR DOOR GUARD (2)
10A COIN LEVER ARM ARE THE HINGES ON THE LEFT OR RIGHT?
10B COIN ARM PIN
11 COIN WHEEL COVER PLATE ARE THE HINGES ON THE LEFT OR RIGHT?
12 COIN WHEEL SPRING SCREW
13 UNIVERSAL SPRING
14 COIN WHEEL COVER SCREW (2)
15 INSIDE LEVER ARM ARE THE HINGES ON THE LEFT OR RIGHT?
16A LEVER ARM COVER PLATE ARE THE HINGES ON THE LEFT OR RIGHT?
16B SCREWS (2)
17 LATCH BAR DOES THE DOOR SWING IN OR OUT?
18 LATCH BAR COVER ARE THE HINGES ON THE LEFT OR RIGHT?
19 MOUNTING SCREWS (4)
20 LATCH BAR COVER PIN
21 LATCH PIN STUD
22 UNIVERSAL SPRING
23 BACK PLATE
24 BACK PLATE MOUNTING SCREWS (5)
25 DOOR SCREW (2) WHAT IS THE THICKNESS OF THE DOOR?
26 INSIDE COVER PLATE
27 COVER PLATE SCREWS (6)
28 HANDLE PULL
29 HANDLE PULL SCREWS
30 STRIKE FOR ALL OUTSWING DOORS
31 STRIKE FOR INSWING DOOR WITH METAL FRAME
32 STRIKE FOR INSWING DOOR WITH WOOD FRAME
